Specification

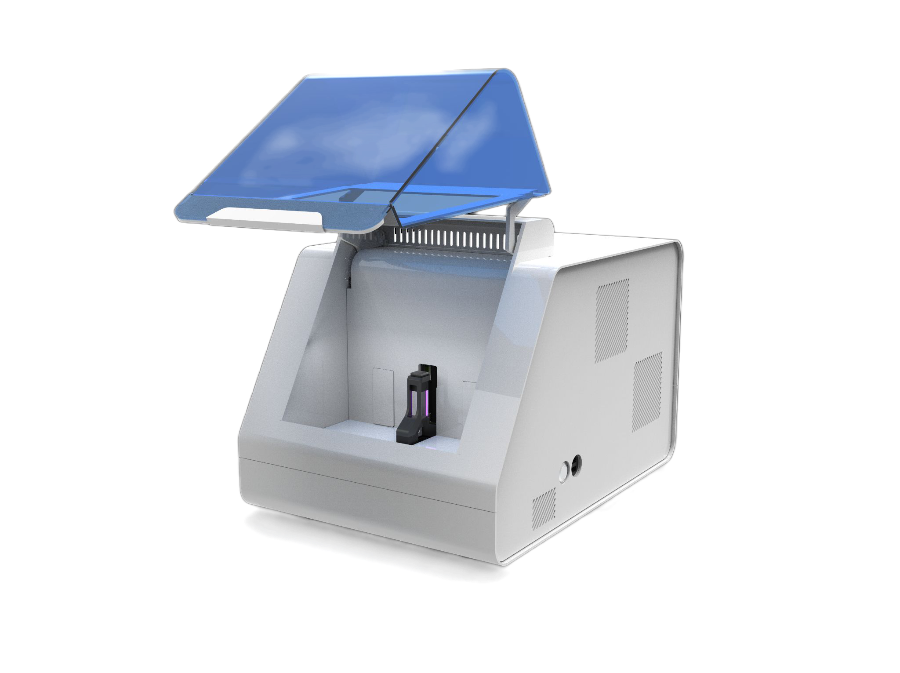

XellCompact bioprinter

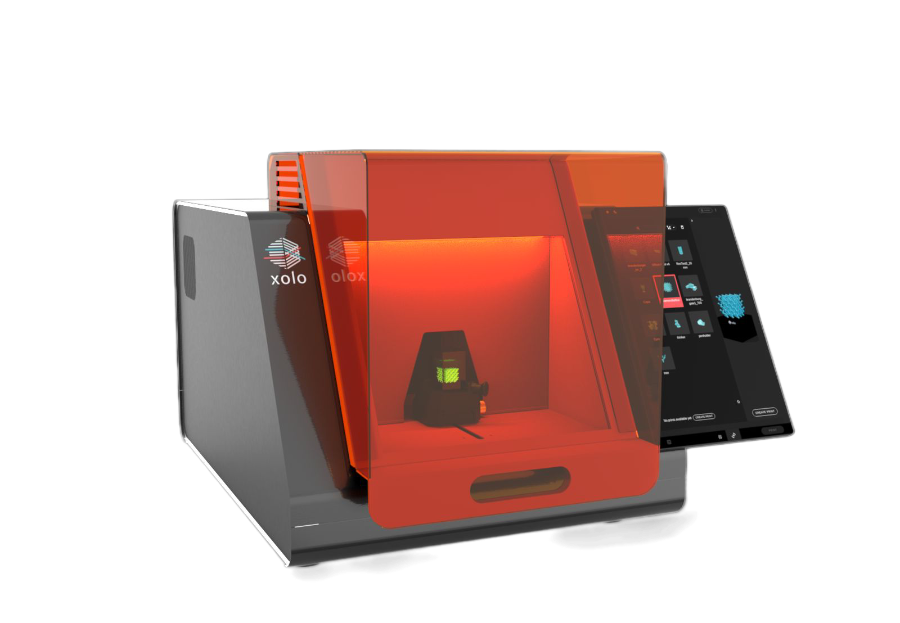

Xube²Flagship R&D printer
- Technology
- Xolography
- Xolography
- Minimum feature size (XYZ)*
- 10 μm
- 5 μm
- Optical resolution (XY)**
- 10 μm
- 5 μm
- Build volume
- 10 mm × 17 mm × 10 mm
- Standard:
10 mm × 17 mm × 10 mm
Custom:
20 mm × 36 mm × 20 mm
30 mm × 53 mm × 30 mm - Typical print speed
- 6 mm/min
- 6 mm/min
- Resin fill system
- Disposable, sealed cartridges
- Reusable or disposable, sealed cartridges
- Materials
- Hydrogels, bio resins, methacrylate resin
- Hydrogels, bio resins, methacrylate resin
- Light sheet source
- 405 nm LED
- 375 nm or 405 nm laser
- Light sheet thickness (Z)
- 150 μm
- 50 μm
- Maximum light sheet intensity
- 2 × 5 mW/mm2
- 2 × 25 mW/mm2 (405 nm)
2 × 10 mW/mm2 (375 nm) - Projector
- Full HD LED
- 4K LED
- Temperature control
- n/a
- 15 °C – 40 °C
- Connectivity
- Wi-Fi (2.4, 5 GHz)
Ethernet (1000 Mbit) - Wi-Fi (2.4, 5 GHz)
Ethernet (1000 Mbit)
USB 2.0 - Power requirements
- 100–240 VAC, 2.4 A
50/60 Hz, 180 W - 100–240 VAC, 3.5 A
50/60 Hz, 350 W - Operating software
- xolid
- xolid
- Printer control
- Web interface, mobile app
- Interactive touchscreen
- Supported CAD file types
- STL
- STL
- Printer dimensions (W × D × H)
- 29 cm × 46 cm × 30 cm
- 72 cm × 80 cm × 50 cm
- Minimum access dimensions (W × D × H)
- 89 cm × 66 cm × 80 cm
- 132 cm × 85 cm × 130 cm
- Weight
- 16 kg
- 90 kg
- Operating environment
- 15 – 25 °C
10 – 65 % humidity - 15 – 25 °C
10 – 65 % humidity - Certificates
- CE
- CE, laser class 1
Printing properties
Hardware
Software
Installation
* Resolution depends on material and build volume size.
** Optical resolution based on 10 × 17 mm projection size (standard vat). Printing in a larger vat increases the optical resolution.
